Export/Import in Excel
Project>Export
To export a project to Excel, select Tab Delimited and make sure to change the file extension to .xls
This example is to change the Cable Length in Excel from 200 ft to 100 ft.

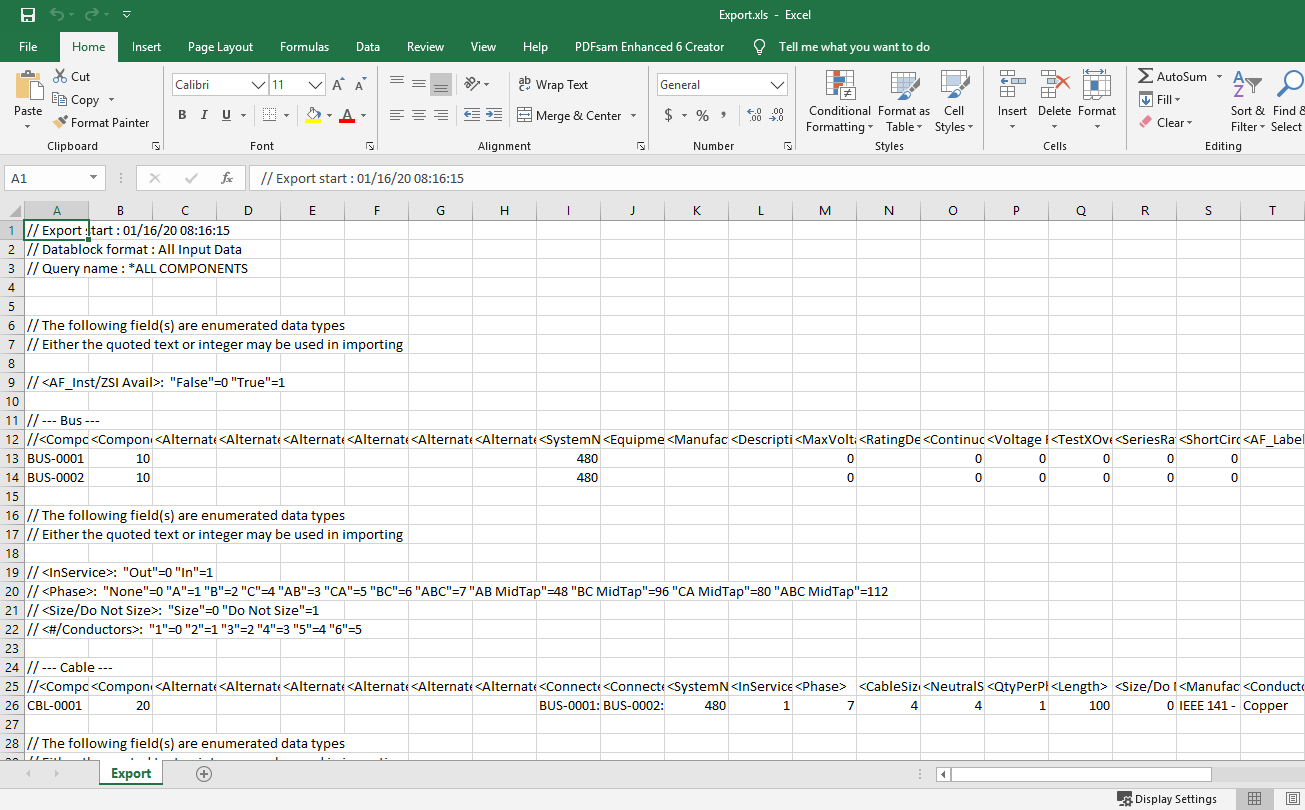

This is the excel file that is generated using the Export command using Tab Delimited.

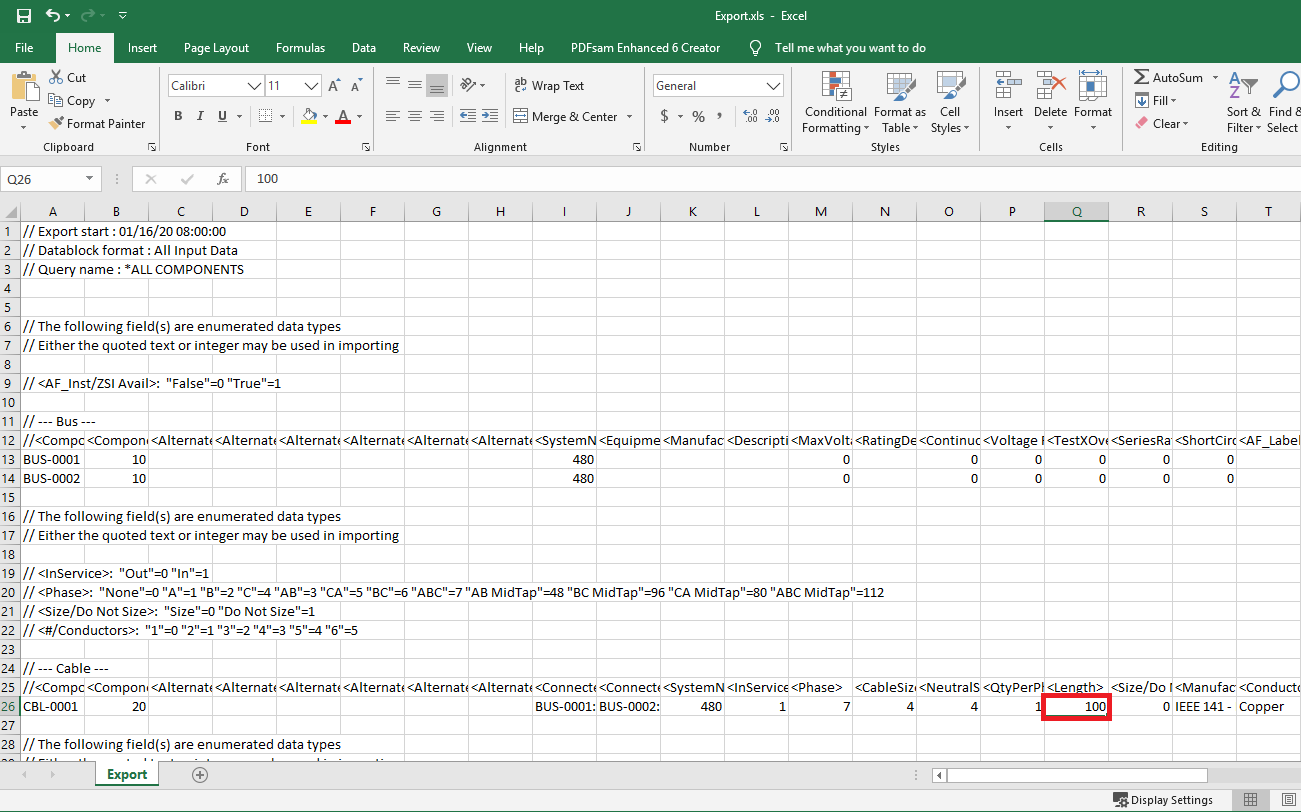

Change the length from 200 ft to 100 ft.
Project>Import

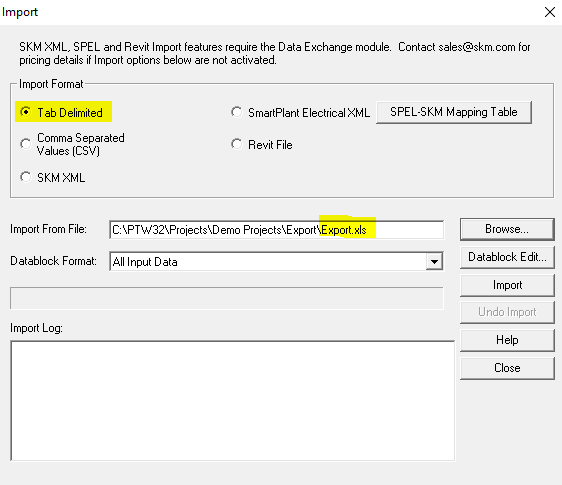

Select Tab Delimited and select the file that was modified and click on Import.

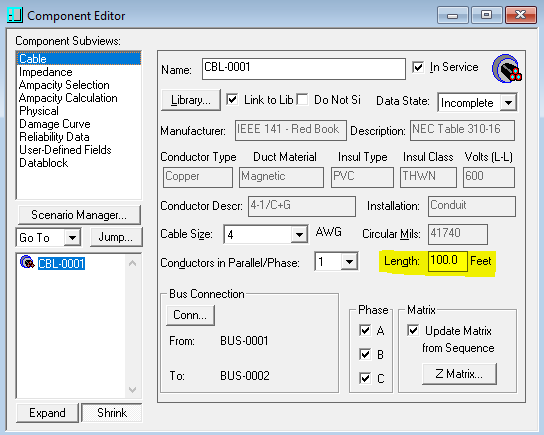

Cable Length is now 100 ft.
