How to create Arc Flash Label in different language

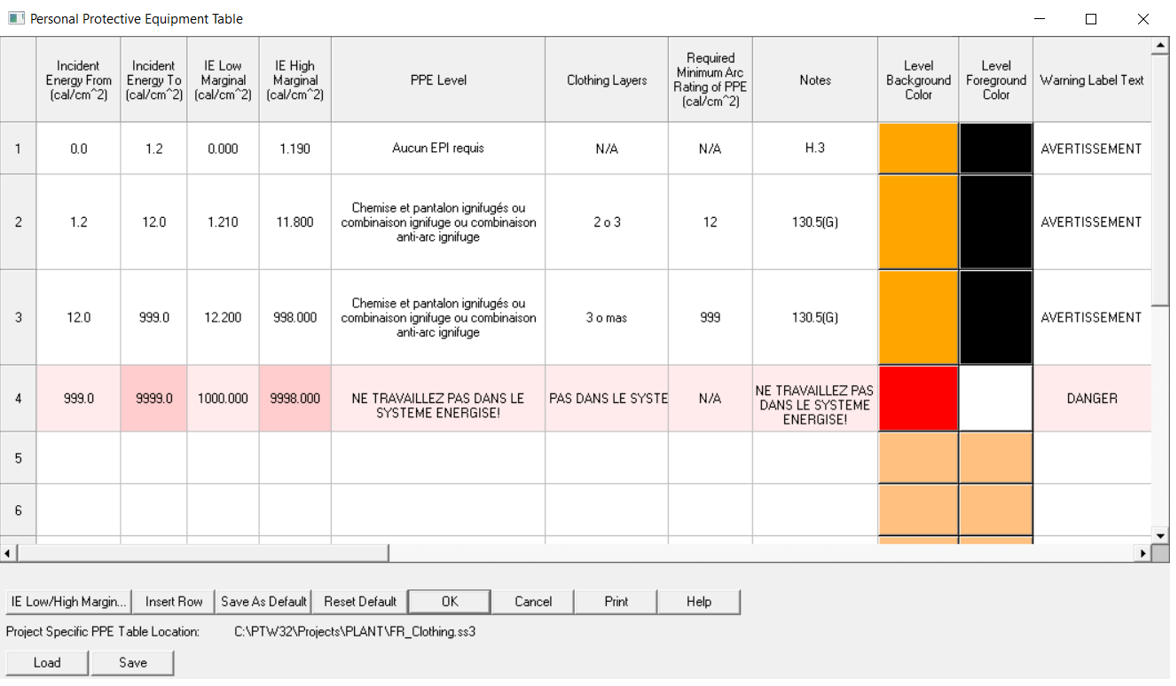

1) Start by modifying the PPE Table. Run>Arc Flash Evaluation>Report Options>PPE Table.
Once you are finished modifying the PPE Table, click on the Save button and give that PPE Table a name. You can Load this PPE Table to any project.
2) Modify the Keyword Table. Arc Flash spreadsheet of Results>Custom Label>Keyword Table.
3) Modify the Arc Flash Label. Arc Flash spreadsheet of Results>Custom Label>Designer>Label Design Detail. Translate the _Textxx information. Make sure to save a copy of the original Arc Flash Label before making the modifications.
Arc Flash Label in French
