Reporting VFD Loadside buses in Arc Flash

Creation date: 10/29/2018 4:28 PM Updated: 10/29/2018 4:28 PM

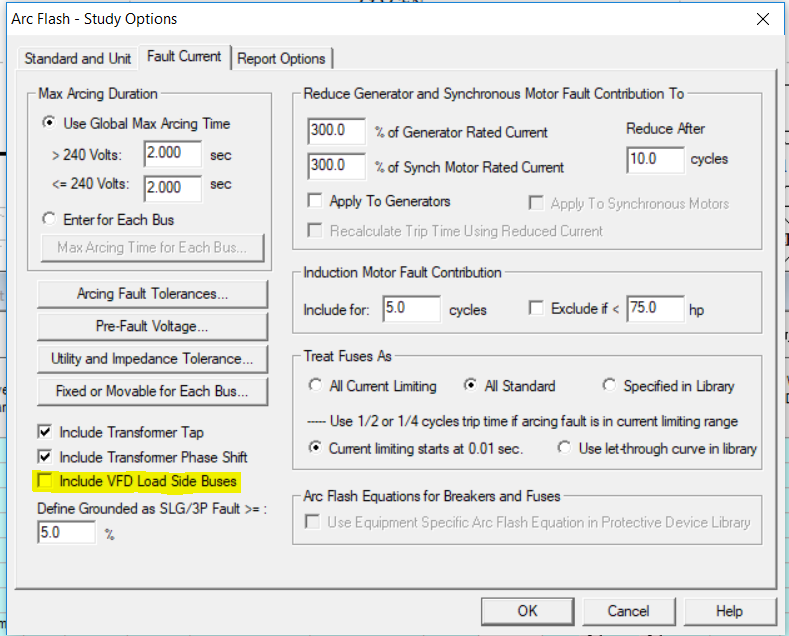

If there are less than 100 buses in a project and "Include VFD Load Side Buses" box is unchecked in the Arc Flash Study Option window, the program will still report the VFD Load side buses.

The option only works if there are more than 100 buses in a project.
